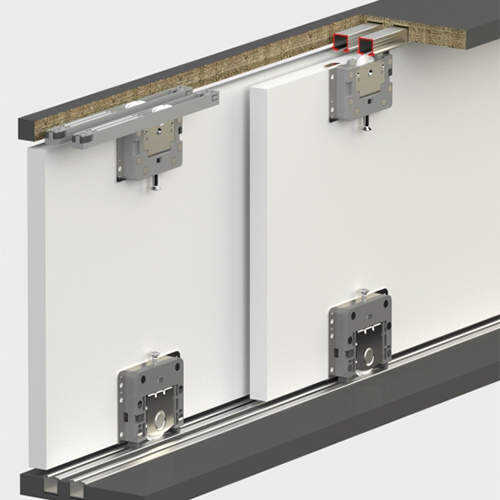

Albatur 1120 Multiline 12 Sliding Cover System 50Kg

Sliding wardrobe system with internal bottom carriage
Applicable on wooden covers
2 / 3 / 4 lid applications are possible
Carrying Capacity is 70 Kg for 1 lid
Suitable for 16 - 22 mm cover thicknesses
Carrier mechanism body is made of sheet metal.
Recommended for use at a maximum height of 2600 mm
Minimum cover width is 400 mm.
Height adjustment of the covers can be made ± 4 mm.
With in-rail brake system, it has braking feature in opening and closing direction.
The decelerator is mounted in the rail
The decelerator works with oiled piston system.
Carrier mechanism wheel type is Gamma model (Male Wheel)
Profiles and mechanisms shipped in separate packaging
In case of lot orders, it can be optionally shipped with Setbox Packaging.

It offers an aesthetic and stylish appearance thanks to its special paint in anthracite color
Quiet and long-lasting operation thanks to high quality bearings
In 3 lid applications, bidirectional decelerator can be applied to all lids
Suitable for glass or mirror application on the sash depending on the carrying capacity
It has different rail profile alternatives as well as recessed top and bottom rail profile preference
Mechanisms can be mounted by screwing without drilling holes on the cabinet
Hole dimensions are suitable for mass production
Preferable for office and wardrobe systems
Aesthetic appearance and healthy working system
Easy and practical installation
The system consists of inner cover and outer cover mechanisms.
Provides a high quality user experience thanks to its silent operation and decelerator system
The distance between the two wings of the system is designed as 12 mm
150-2800 series handle profiles specially designed for 18 mm panel can be preferred
Pulltens puller system is recommended for all sliding systems
3rd cover can be requested optionally
It is recommended to use the Plinth Adjustment Mechanism to level the cabinet. ( Feet 0129 )
Excluding Rail
