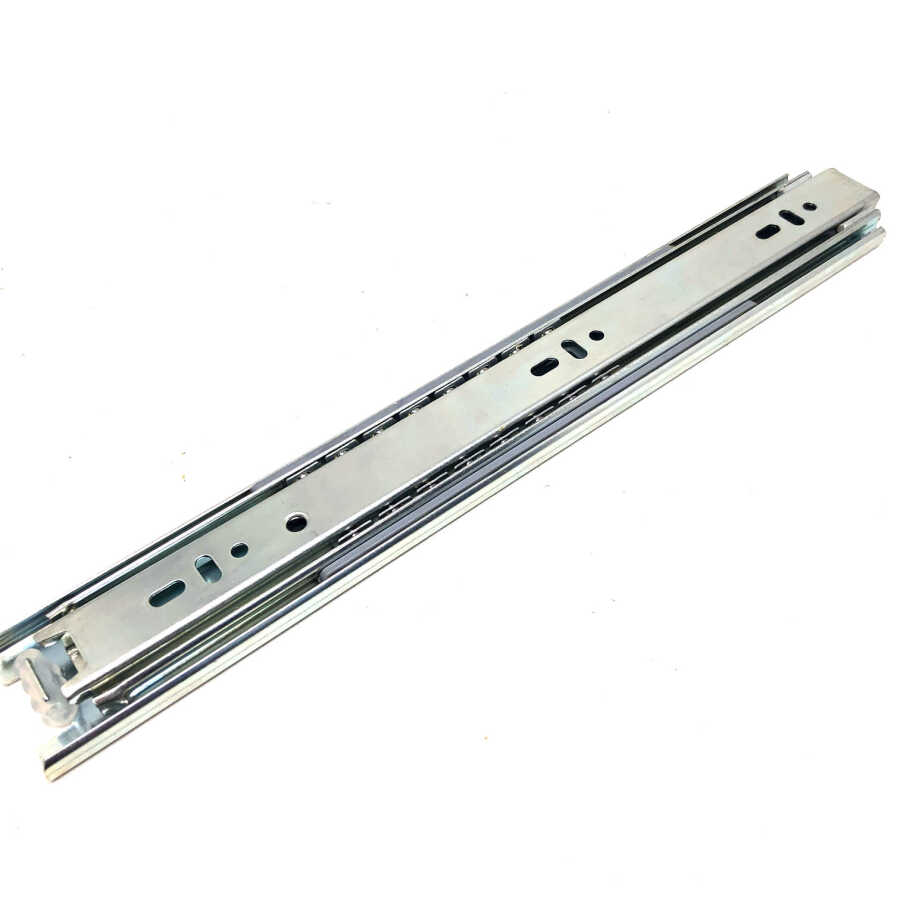

Array Telescopic Ball Rail 43X300

Produced Rail Lengths : 250-300-350-400-450-500-550-600-650-700 mm
Carrying Capacity : 25 Kg including drawer.
Sheet Thicknesses : Inner Rail: 1.00 mm / Middle Rail: 1.00 mm / Outer Rail: 1.00 mm

Production Technology:
All rails are produced in our Telescopic Rail production facility with fully automatic machines.

All quality and features are the same and they are produced in two types: glossy coated with DKP sheet and matt coated with galvanised sheet.

The rail consists of 3 parts (Inner, Middle and Outer Rail) and allows the drawer to open and come out completely.

It has ease of assembly with the feature of being separated from each other.

It is a STRONG and ECONOMIC rail in the telescopic rail series.

Production is made with ISO Quality system.
It has been subjected to all internationally recognised tests and certified.

We also have a certificate compatible with human health.

Material Type :

MAT Inner - Middle - Outer Rail Material Type: Special Quality Galvanised Coated Sheet Metal is used.

Glossy Inner - Middle - Outer Rail Material Type : Special Quality DKP Sheet Metal is used.

Zinc Alkali Cr + 3 coating compatible with human health is applied on it.

Metal Ball Bearing Material Type : Special Quality Galvanised Coated Sheet Metal is used.

Plastic Ball Bearing Material Type : Dupont

Steel Ball Material Type :Special Quality High Carbon Steel

ASSEMBLY:

There are 32 and multiples of the international standard hole system.

Holes suitable for the drawer are drilled. The removed inner rail is screwed to the drawer.

It is screwed to the drawer with only 2 screws (YHB M4 Bolt or YHB Ø 3,5 Chipboard).

The gap between the frame and the drawer is left 13 mm.

Thanks to the latch on the inner rail, the rail can be separated from each other. The drawer can be removed from the frame.
